The missing slow slip events on Kīlauea’s south flank - USGS Volcano Watch

1:47 AM · Feb 24, 2023

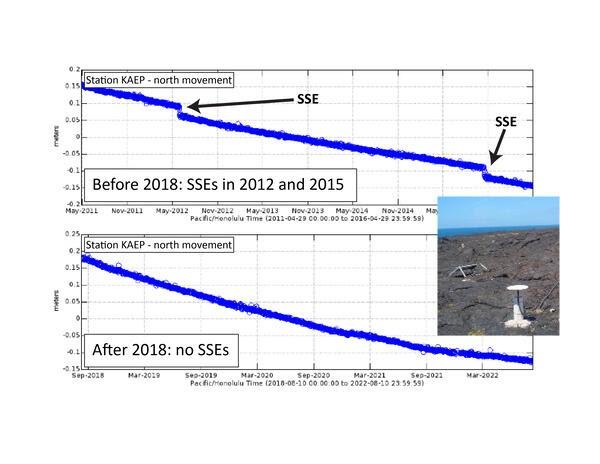

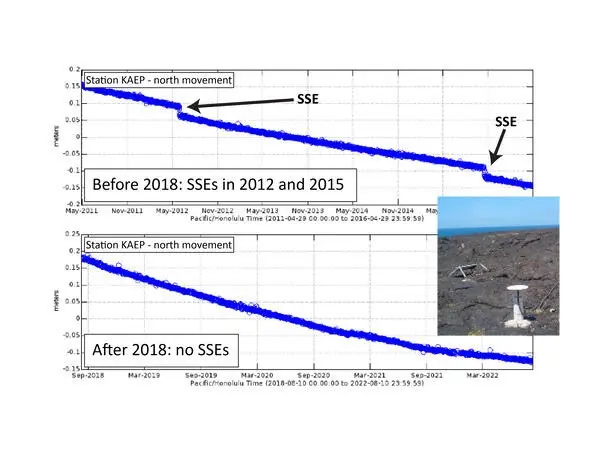

Over the past two decades, both scientists and members of the public have anticipated the occurrence of slow slip events (SSEs) on Kīlauea’s south flank. These events are recorded by the Hawaiian Volcano Observatory’s (HVO) continuous GPS network, which show as much as 2 cm (0.75 inches) of increased seaward motion of the flank over 2-3 days—equivalent to about a M6 earthquake. South flank SSEs occur on the nearly-flat decollement fault that sits 6-8 km (4-5 miles) below the ground surface at the interface of Kīlauea and the preexisting ocean floor. The decollement fault can slip in large earthquakes, as well as via steady creep. “Steady creep” means that portions of the decollement fault are continuously sliding very slowly. Because of their slow speed, SSEs do not generate the seismic waves that cause hazardous shaking. Thus, both steady creep and SSEs safely release stress. After 2005, SSEs on Kīlauea’s south flank occurred every 2.5 years, give or take 3 months. These included SSEs in June 2007, February 2010, May 2012, and October 2015. HVO anticipated that another SSE would happen between February and August of 2018. Instead, the lower East Rift Zone eruption of Kīlauea began on May 3, 2018. If a slow slip event had occurred during this eruption, the unique spatial and temporal pattern in the continuous GPS would have still been detectable. However, no SSE occurred. Furthermore, there has not been another SSE on Kīlauea’s decollement fault since 2018. It has now been just over seven years since the last one occurred in 2015. One reason for this may be the M6.9 earthquake that occurred on May 4, 2018, just after the first lower East Rift Zone eruptive vent opening. The variety of slip behaviors (earthquakes, creep, SSEs) on the decollement fault suggests that the fault has zones with different frictional properties. Some areas have “velocity-weakening” frictional properties, which allows them to initiate (nucleate) earthquakes, and some areas have “velocity-strengthening” friction, which leads to steady creep. Slow slip events can occur in “velocity-strengthening” regions, but can also be an indication that the frictional properties of the fault are more complicated. “Velocity-weakening” frictional properties are something most of us a familiar with. If you’re trying to move a heavy box, you just need to get the box sliding a little bit before it moves easily. This is because the strength of the frictional force between the box and floor goes down once it starts sliding. Earthquakes occur as quickly as they do because once the stress on the fault is high enough to slide it a little (nucleate), it becomes easier to continue slipping until the excess stress is used. “Velocity-strengthening” friction is less intuitive; its more similar to “drag” processes. If you have ever tried to quickly wade through knee-deep water, then you may remember that it gets harder, the faster you try to move. The best strategy is to choose a slow even pace, one that matches the drag force of the water to your strength. In the same way, faults with velocity-strengthening friction must release their stress slowly and evenly, balancing the frictional force that increases as they slide, to the driving stress. So why would the M6.9 earthquake prevent SSEs from occurring? Although earthquakes can’t nucleate in velocity-strengthening regions, if an earthquake starts with enough energy, it can grow into an SSE region. The effect is somewhat like running from shore into the ocean; you might get far if you start with enough speed. This is what the 2018 M6.9 earthquake did; its epicenter was offshore and west of Kalapana, but the earthquake involved slip on a 26 km (16 mile) length of the fault, stretching to the west and including the region of the decollement fault that produced SSEs. The massive stress release of the earthquake rupture means that the section of the fault that produced SSEs may need time before it has built enough stress to start producing SSEs again. Observing what happens next and what (if anything) brings the SSEs back, could provide a fascinating view into the frictional properties of Kīlauea’s south flank decollement fault. The massive changes that the 2018 eruption brought to the landscape and to Kīlauea, will continue to drive interesting science for years to come. ---- Image and caption via USGS-HVO: The top panel is from before the 2018 Kīlauea eruption and shows two steps corresponding to slow slip events (SSEs). The bottom panel is from after 2018 and shows no evidence of step-like motion indicative of SSEs, although the slight curve does suggest that a post-eruption increase in seaward motion is slowly returning to background. The inset photo is of the KAEP instrument site, on Kīlauea’s south flank. USGS plots. ---- Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates. Today’s article is by HVO research geophysicist Ingrid Johanson.
