Separating signals: What matters to seismologists? — USGS Volcano Watch

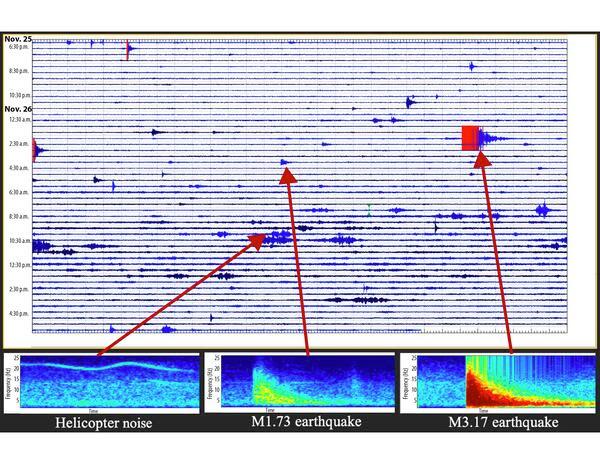

11:53 PM · Jan 4, 2024Whether they originate above or below the Earth’s surface, a wide array of signals appear on the USGS Hawaiian Volcano Observatory’s earthquake-detecting (seismic) data streams. Part of a seismic analyst’s duty is identifying normal versus irregular seismic activity. Being able to distinguish between random signals and volcanically induced seismic activity allows USGS Hawaiian Volcano Observatory (HVO) seismologists to keep a closer eye on what matters, the volcanoes. Seismic signals can be divided into two categories: natural Earth processes and anthropogenic, or human caused, signals. The more stations that a signal reaches, the more likely it is that signal originated due to underground Earth processes. For example, a strong enough earthquake will reach many, if not all seismic stations on the island. Conversely, if only a few stations close to each other record a signal, it is likely that the source is anthropogenic or not volcanically related (for example, a quarry blast or a rockfall). There are several common anthropogenic signals that HVO seismologists see daily. One of the most frequent and easiest to identify are helicopters. Sound waves from a flying helicopter are strong enough to affect seismometers on the ground. Although they might be hard to identify on a seismogram—which shows ground motion recorded over time by a seismometer as wiggly lines—helicopters are easily revealed in a spectrogram—which shows the frequency spectrum recorded by a seismometer over time. Spectrograms use colors ranging from deep blue to red to represent the strength, or loudness, of a signal. The figure here shows a helicopter’s noise recorded on a spectrogram in comparison with that of a few local earthquakes. The helicopter noise on the spectrogram is light blue, meaning it is much less intense than the strong red signal of the magnitude-3.17 earthquake. Other anthropogenic signals, like foot and vehicle traffic, can appear noisy and undiscernible, but they are still very different from volcanic seismicity. Within Hawaiʻi Volcanoes National Park, signals like these usually occur in high traffic areas near seismometers but disappear at night. The top half of the seismogram shown here (6:00 p.m.–6:00 a.m. HST) is much quieter than the bottom half (6:00 a.m.–6:00 p.m. HST). This diurnal cultural noise, defined as noise from human activity repeated on a daily basis, can mostly be ignored. When analysts at HVO see a signal they don’t recognize, it is helpful to note whether the signal occurred during daylight hours and how many stations “saw” the signal. The ability to identify and ignore anthropogenic noise allows seismic analysts to pay more attention to the signals coming from volcanoes. VT, or volcano-tectonic earthquakes, usually occur due to a slip on a fault in a volcano; the locations of these earthquakes can give us clues about changing stresses due to magma movement within a volcano. A typical local VT earthquake is easy to identify in a seismogram, with its sharp, sudden arrival and a tail that tapers off. A higher magnitude earthquake will appear deeper red on a spectrogram, while lower magnitude earthquakes range from green to yellow. Besides an earthquake’s tell-tale shape, seismic stations across the island will record the same event if it is large enough. For example, a magnitude-3.5 earthquake originating below Kīlauea will show up a few moments later and slightly weaker at Mauna Loa seismic stations. Much like how scientists used to locate earthquakes using seismic wave travel times, HVO has an automated system that calculates the location and magnitude of each earthquake using information from as many stations as possible. However, there are sometimes errors associated with the automated system so HVO’s seismic analysts check all events larger than around magnitude-2. Seismologists also cannot rely on the automated system to catch every signal. Magma and other fluids move around within the underground volcanic system, resulting in a sort of quiet gurgling very different from VT noise. Volcanically induced LP (long period) events are lower frequency, last much longer, and are less common than VT events. Though these signals are important to monitor, the movement of magma is not always an indication of an imminent eruption. When VT and LP events occur together, say below the summit of Kīlauea, seismologists at HVO might raise awareness of the potential for an eruption. January is Volcano Awareness Month on the Island of Hawai‘i! Join us this coming week for a guided hike at the Kahuku Unit of Hawaiʻi Volcanoes National Park at 9:30 a.m. on January 7, an After Dark in the Park Program on Kīlauea's recent summit eruptions in Hawai‘i Volcanoes National Park at 7 p.m. on January 9, or for "talk story" at Nāʻālehu Public Library from 1-4 p.m. on January 10. The full schedule of programs being offered on the Island of Hawai‘i as part of Volcano Awareness Month is available here. ----- Images and captions from USGS: Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates. Today's article was written by Research Corporation of the University of Hawai‘i seismic analyst Maddie Hawk. ----- Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates. Today's article was written by Research Corporation of the University of Hawai‘i seismic analyst Maddie Hawk.
