New Instrument Measures Lava Lake with Laser - USGS Volcano Watch

7:32 AM · Jun 18, 2021

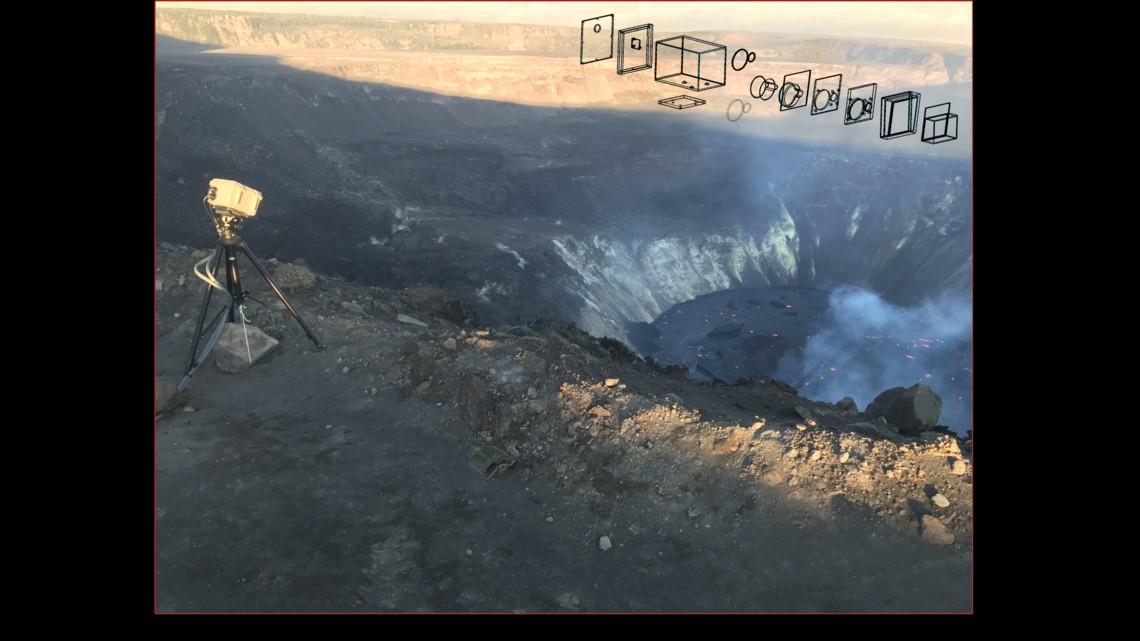

USGS -- The night sky over Kīlauea summit lit up with the glow of lava Sunday, December 20th, 2020. Deep in the caldera, the gathered lake water was boiled by surging lava. A reddened plume escaped the crater, as lava took its place within Halemaʻumaʻu. Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates. This week’s article was written by Hawaiian Volcano Observatory Field Engineer Frank Younger. -- Eyewitnesses drawn to the crater rim were excited, reverent, and watchful. The eruption onset was observed near and far via technology. The USGS Hawaiian Volcano Observatory (HVO) was onsite and online, transmitting scientific information as the eruption response mounted. Kīlauea’s volcanic activity requires the best available data in real time. HVO quickly deployed eruption response instruments to the field. New technology was implemented, leveraging the strength of HVO’s permanent volcano monitoring network. HVO’s prototype Continuous Laser Rangefinder (CLR) gauge was hardened for continuous gauging and pressed into service as part of this effort on December 26th, 2020. The data stream was fully networked and operational on January 8th, 2021. This newly-developed instrument monitors lava lake dynamics with unprecedented resolution. The CLR gauge autonomously measures lava lake elevation in real time, using the light-reflecting properties of the lava surface. The CLR gauge is stationed on the western rim of Halemaʻumaʻu crater within a closed area of Hawaiʻi Volcanoes National Park, under a National Park Service permit. The instrument is aimed into the crater at an inclination of 32.57 degrees below the horizon. Current measurement range is about 733 m (2405 ft). The CLR gauge transmits a laser pulse every second. The 1550 nanometer wavelength laser is invisible and eye safe. The laser beam broadens with distance, making a target footprint about 0.5 m (1.6 ft) diameter on the lava lake surface near the previously active vents on Halemaʻumaʻu’s northwest wall. A receiver diode senses laser signals reflected from down range. A microprocessor calculates the distance to the lake surface within a centimeter (<½ inch) by measuring the time of flight of the laser pulse. An onboard inclinometer measures the slant angle of the laser beam. The beam angle is used to calculate vertical elevation of the lake surface below the surveyed instrument elevation. The instrument is stabilized by a sturdy tripod installation, a feature that improves measurement precision. Real time range measurements are telemetered via HVO’s digital radio network. Database acquisition scripting and custom web plots were designed by HVO to make the lava lake gauge data useful and available on an HVO public webpage for the eruption. Foul weather and gas emissions can produce error returns, which are mostly filtered out by minimum distance thresholds. Three discrete signal returns are processed, making good measurements possible in challenging conditions such as heavy rain and vog. Kīlauea is a harsh environment for instrumentation. Corrosive volcanic gas, abrasive tephra, heavy rainfall, lightening, and ballistic ejections are a threat to monitoring equipment. The CLR gauge optical components are protected by a custom enclosure. HVO designed twenty-three custom parts for the CLR gauge that were modeled with computer-aided design (CAD) software, 3D printed and machined in-house. The CLR gauge is co-located with the KW optical camera and F1 thermal camera. The equipment is solar powered by HVO’s flyaway photovoltaic stations, which are rapidly deployed by helicopter. The laser instrument draws 4.5 watts power. The CLR gauge complements other types of data routinely collected by HVO scientists in the field. Portable laser rangefinder measurements, photogrammetry modeling, and scanning Light Detection and Ranging (LiDAR) surveys are undertaken to study the lava lake at periodic intervals. These techniques provide broader spatial coverage than the CLR’s single point measurement, but are sporadic and have higher error. Kīlauea’s latest eruption inspired this innovation, and it has provided five months of high-resolution data documenting Halemaumau's lava lake growth. CLR lava lake measurements were combined with digital elevation maps of the crater to estimate effusion rate in real time, a first for Kīlauea. The CLR was also instrumental in determining when the eruption paused. This resilient tool will certainly find wider applications in volcano monitoring in Hawaiʻi and elsewhere. Image and caption from USGS: Continuous Laser Rangefinder gauge on crater rim measuring Halema’uma’u lava lake, Kīlauea summit, 12/26/2020. Exploded drawing of instrument optical enclosure upper right. USGS photo and drawing by F. Younger. (Public domain.)
