How USGS-HVO Tracks Changes on Hawaiian Volcanoes Using GPS - Volcano Watch

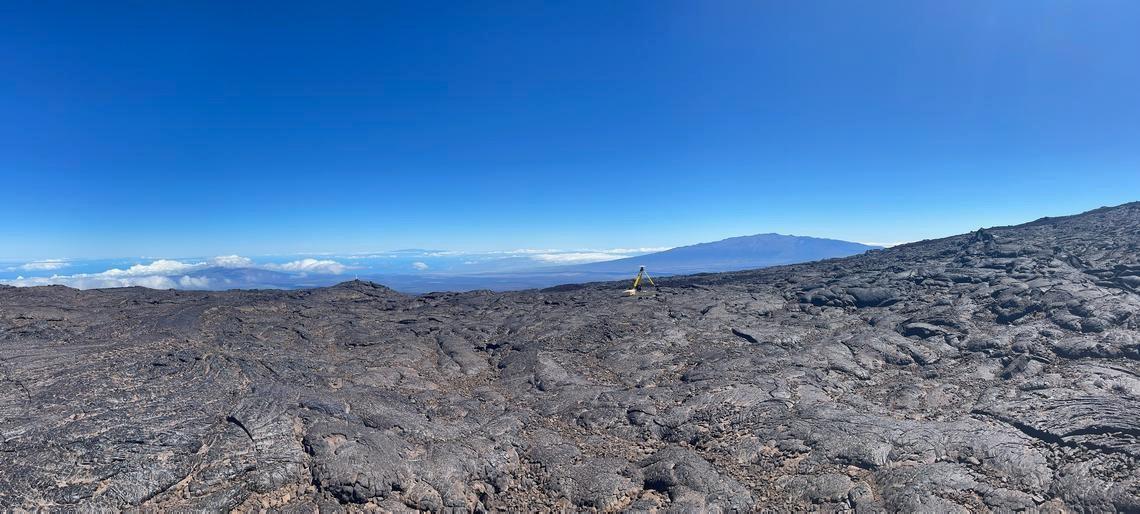

6:20 AM · Jun 11, 2021Volcano Watch — Campaign season is here! Another way HVO tracks changes on Hawaiian volcanoes Geodetic surveys measure the change in shape of our volcanoes due to changes in magma supply and storage. The USGS Hawaiian Volcano Observatory (HVO) has a long history of using many different types of instruments and technologies over the decades to detect these changes. Global Positioning Systems (GPS) receivers are currently the primary instrument of choice to measure changes in distance and elevation due to movement of magma in and out of the volcanoes. These have replaced more traditional surveying instruments that were used in the past. These measurements initially began as attempts to find the summit elevations and eventually led to the conclusion that Mauna Loa and Kīlauea changed due to the coming and going of magma. HVO now operates 67 GPS stations on the Island of Hawai‘i that take elevation and position measurements constantly. HVO also conducts campaign surveys to increase the coverage across Hawaiian volcanoes. Campaign GPS surveys are conducted periodically, where high precision instruments are deployed on the volcanoes and operate for days to weeks. These instruments are setup at long-term fixed sites, known as benchmarks, across both Kīlauea and Mauna Loa. The sites are visited yearly, and the difference in position between each yearly visit provides information on how the volcano has changed or behaved over that period of time. Many of these benchmarks have been occupied every year since 1996, providing one of the longest spanning GPS time-series—a sequence of data points that occur over a period of time—of any volcano in the world. These yearly campaign surveys help supplement the continuously recording GPS receivers that blanket the Island of Hawai‘i. Both the campaign and continuous GPS instruments can measure their positions to within a fraction of an inch, and can thereby detect extremely small movements on the earth’s crust. However, these continuous stations have significant infrastructure requirements, for example, substantial power consumption, radio telemetry needs, and site accessibility. Campaign GPS does not have the same requirements as continuous GPS. Although the instruments are only deployed for a short time, the data they collect helps scientist to refine current models of volcanic activity, like inflation at the summit of Mauna Loa. Kinematic GPS (kGPS) is another technique used to complement HVO’s continuous GPS network. The kGPS surveys take much less time to complete (a few minutes versus days). However, they rely on a static reference station to find a position and have significantly less precision (1–2 inches) than campaign GPS. HVO completes these surveys occasionally along Hilina Pali, Kānenuiohamo, and the summit of Kīlauea. This past May, HVO completed the Mauna Loa GPS campaign survey, visiting 32 sites across the volcano. Along with Mauna Loa and Kīlauea, HVO also surveys Hualālai and Haleakalā every 3–5 years as part of our volcano monitoring program to keep a long-term record of the background deformation (“baseline”) of these quiet but still active volcanoes. Baselines are extremely important for potentially active volcanoes. The inactive periods of time help scientists create an accurate comparison point for when the volcano does become restless. To learn more about GPS read this Volcano Watch: https://www.usgs.gov/center-news/volcano-watch-important-point-measuring-volcanos-shape-high-precision-gnss The use of continuous and campaign GPS instruments together helps HVO scientists gain a better understanding of what might be occurring below the surface of our volcanoes and the time scale these changes take place. These measurements can reveal underground magma movement within the volcano, and have proved to be an essential tool in monitoring the internal conditions of the magmatic storage system. --- Image Caption: On the west side of Mauna Loa summit, a campaign GPS (center-right) measures its location for a period of 2–3 days. This site has been occupied every year by helicopter since 1994. Mauna Kea, Hualālai and Haleakalā can be seen in the distance. USGS photo taken by S. Conway on May 11, 2021, during the 2021 Mauna Loa GPS campaign survey.
They will have to have less precision even if there is a fixed base on which they are mounted each time because you can't put a macroscopic object in the exact same position twice. The limit on that is a lot smaller than 1-2" though.
